Unreal Engine: Gameplay Ability System

Last week was inventory systems; this week, the Gameplay Ability System (GAS) – the framework that gives designers and artists a way to compose abilities, effects, and attributes without writing bespoke code for every interaction.

GAS is famously one of the more complex systems in Unreal – the course eased into it with a well-known example: the Half-Life gravity gun. The gun has the ability to lift; the wooden crate has the ability to be lifted – a target→source relationship.

It’s a deceptively simple framing for a system designed to solve a very real scaling problem: a VR simulation with tools and objects having different interactions, or a game with many weapons and many abilities, gets complicated fast without a unifying abstraction.

Since there was already a straightforward example project provided, I took notes and adapted the example into my own repository:

sawnoff-studios/gameplay-ability-system

Enabling the Plugins

Gameplay Abilities
Gameplay Tags Editor

C++ Setup

Add to PrivateDependencyModuleNames in Build.cs:

GameplayAbilities
GameplayTags
GameplayTasks

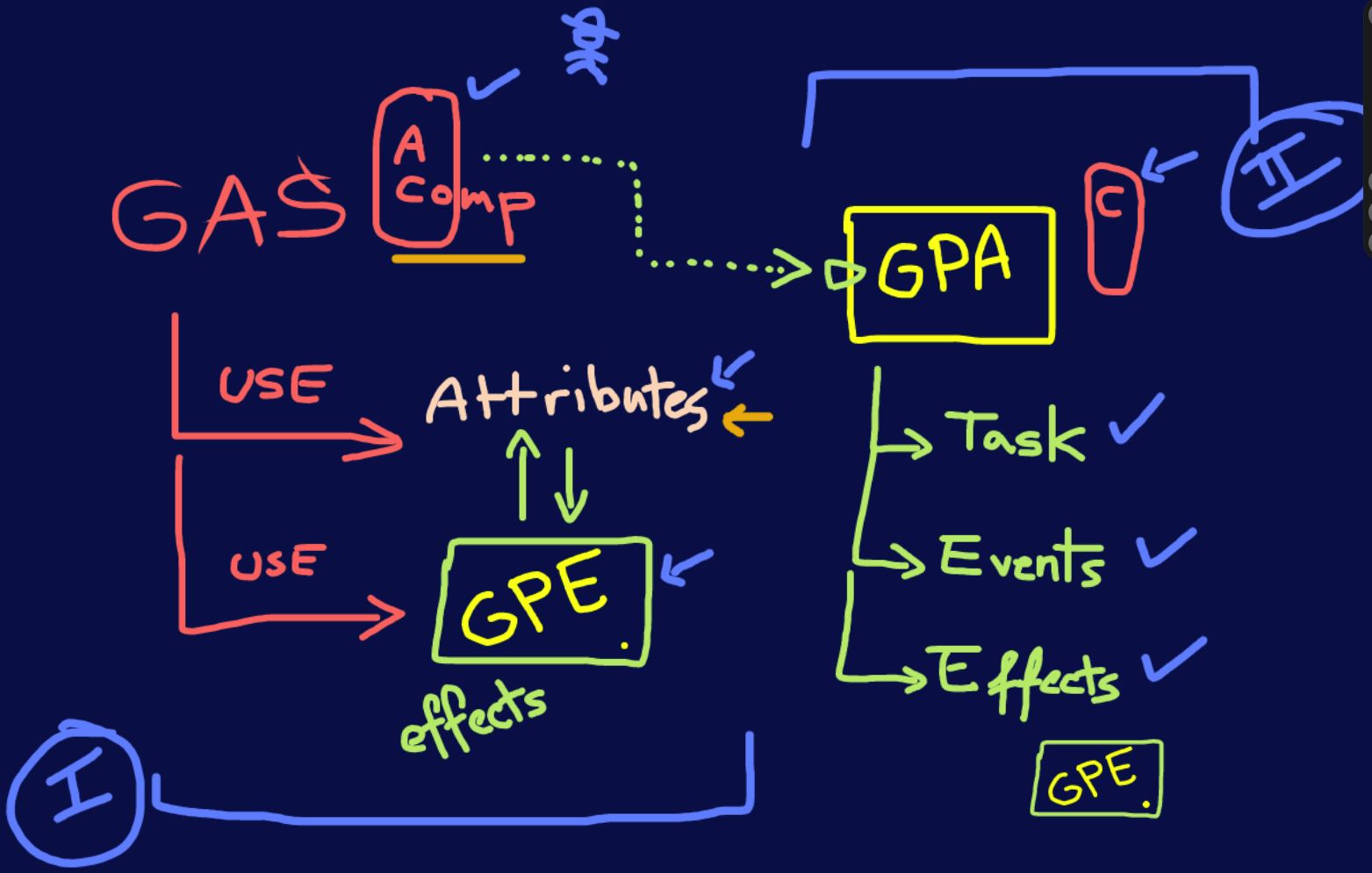

The Ability System Component

The central hub is the UAbilitySystemComponent - the bridge between Actors and the rest of GAS.

Any Actor intending to interact with GAS needs its own Ability System Component, or access to one on its PlayerState or Pawn
Implement UAbilitySystemComponent and IAbilitySystemInterface, whose GetAbilitySystemComponent() method returns the component
Include AbilitySystemComponent.h in the header

Gameplay Attributes and Attribute Sets

Attribute Setss provide consistent, reusable groups of attributes, which Gameplay Abilities can access through reflection.

Attributes are worth the ceremony because they:

Track default and current values separately – making temporary modifications (buffs/debuffs) far easier
Can replicate to all clients like normal properties
Save time “designing ideal combinations” of property values, via data tables

Creating an attribute set in C++:

Create an instance of an AttributeSet class
Include AbilitySystemComponent.h
Use the custom macro to expose properties to the reflection system
Assign defaults in the constructor using Init + property name (e.g. InitHealth(100))

Using the set:

Add the attribute set as a property in the C++ parent class
Assign your custom attribute set class and give it a value in BeginPlay()
To set defaults in the Blueprint instead: show inherited variables in the My Blueprint sidebar, find the Ability System Component (e.g. ASC_01), and set its Default Starting Data to a data table

Data Tables

Choose AttributeMetaData as the row structure
Naming convention for rows: [class name without prefix].[attribute name] - e.g. CPPAttrSet_01.Health_01
Attach the data table in the Actor Blueprint editor as above

Gameplay Effects

Gameplay Effects apply changes to the Actors targeted by Gameplay Abilities:

The effect stays attached to the target Actor until removed – optionally with a limited lifetime, then expiring
Effects can process information from both the target Actor and the ability applying them

Creating one: inherit from the GameplayEffect class, select an attribute, choose a Modifier Op, add a value - then call the Apply Gameplay Effect node. The attribute changes and updates at the end of the frame.

Gameplay Abilities

A Gameplay Ability is an action or procedure that an Actor can own and trigger repeatedly – spells, special attacks, item effects.

Inherit from the GameplayAbility class
Grant it with the Give Ability node (the Target pin specifies the Actor) – the Ability System Component owns the add/remove of abilities
Activate via TryActivateAbilityByClass

Lifecycle and gotchas:

OnEndAbility can be called from anywhere and terminates execution - rerun Give Ability to make the ability usable again
When activating via the ActivateAbility event, use the CommitAbility node first – and check its output with a Branch:
- true → ability is registered and ready to use
- false → call EndAbility to terminate
Debug messages are strongly recommended at this stage
Gameplay Effects can run after a successful commit
Effects can use the ability’s owner, or references from other actors – so activating an ability can affect the activator and third parties (who also need their own Ability System Components)

Gameplay Tasks

Tasks belong to a Gameplay Ability object and execute specific actions – more complex than Gameplay Effects, and composable to build custom abilities.

Task nodes have multiple execution output pins:

On Finish, On Landed, On Target Location Reached, Did Not Spawn …

The default execution output fires immediately; the named pins fire later, depending on the task’s functionality.

Putting it together - the many-weapons scenario: create weapon-related attributes (power, damage, reload time…), create gameplay effects that change those attributes, activate them via GameplayAbility, then layer the presentation (sound, animation, VFX) on top.

Gameplay Events

Events act as pipelines into GameplayAbilities:

Add a Wait Gameplay Event node in the ability
Build event data with the Make GameplayEventData node
Fire it with Send Gameplay Event to Actor, setting the Event Tag property
Access the payload inside the ability with a Break node from the Wait node’s Payload pin

Effects can also use Gameplay Effect Calculations – including custom calculations with complex logic (e.g. combining multiple attributes).

Events execute immediately or can be delayed; OnEndAbility terminates all events and tasks alike, and TryActivateAbilityByClass restarts the cycle.

Gameplay Tags

Tags limit and manage the execution of effects, tasks, and events:

Abilities can apply a list of tags to the owning Actor when activated
Lists of tags can block activation or automatically cancel a running ability
Manual cancelling/blocking is also possible in code

Creating them:

In the GameplayAbility’s Details panel → Tags → dropdown → Manage Gameplay Tags
This opens the Gameplay Tag Manager, backed by DefaultGameplayTags.ini
Add new tags, or sub-tags to organise the tree

Tags must be globally unique – duplicates error on creation.

Notes on things that stood out

GAS is the biggest “framework thinking” week of the course so far: everything - attributes, effects, abilities, tasks, events, tags - is data designed to be composed by people who aren’t writing code. The gravity gun framing at the start is the honest elevator pitch: the gun declares it lifts, the crate declares it can be lifted, and nobody wires them together by hand.

My lasting impression after the first pass: the ability lifecycle (Give → TryActivate → Commit → End → Give again) is where things actually break, and the course’s recommendation to lean on debug messages there is well-founded - the system fails silently more often than it errors.
